DS-9632NI-M8

DS-9632NI-M8

Original price was: 45.500,00 EGP.Current price is: 44.900,00 EGP.

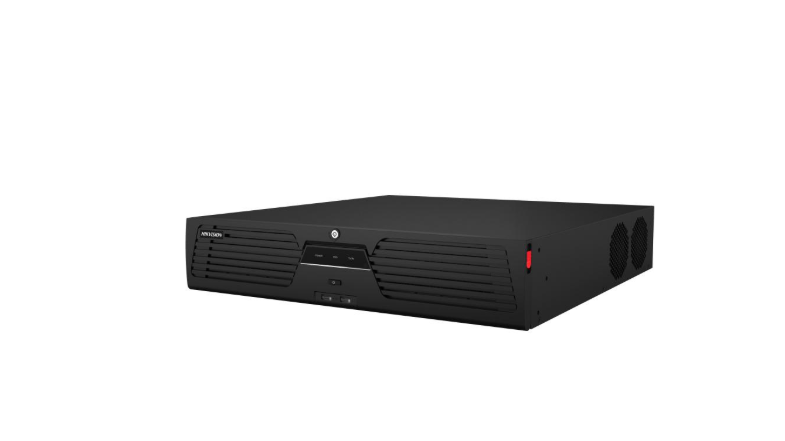

32-ch 2U 8K NVR

  • Up to 32-ch IP camera inputs
  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
  • Up to 8-ch IP speakers can be connected
Category:

Description

  • IP Video Input32-ch
  • Incoming Bandwidth320 Mbps
  • Outgoing Bandwidth400 Mbps
  • HDMI 1 Output8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
  • HDMI 2 Output

    4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

    *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

  • VGA 1 Output1920 × 1080/60 Hz
  • VGA 2 Output1920 × 1080/60 Hz
  • Video Output Mode

    HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

    HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output2-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265+/H.265/H.264+/H.264
  • Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback16-ch
  • Decoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
